This "HX STOMP" pedal-board integrates the following...

1. 'Line 6' HX STOMP
2. 'Line 6' G30 Wireless
3. 'NUX' NSS5 Speaker/ Amp Simulator & IR loader
4. 'T.C. Electronic' Hall-of-Fame Reverb
5. 'Disaster Area' DMC.micro MIDI Controller
6. 'Truetone' CS6 pedal-board Power Supply
7. Custom Crybaby MINI wah modified for Expression Pedal
8. Custom SOLO level control box for Global Amp level
9. Custom Wireless/ Cable switch box
10. Custom HX Stomp FX Loop Break-out-box
11. Custom DMC.micro EXP pedal Break-out-box
12. USB-B connector for computer connection to the HX STOMP

All mounted on a 16-1/4" x 10-3/4" ozite carpet covered 5/8" plywood board.

_________________________________________







PEDALBOARD LAYOUT





PEDALBOARD WIRING

_________________________________________

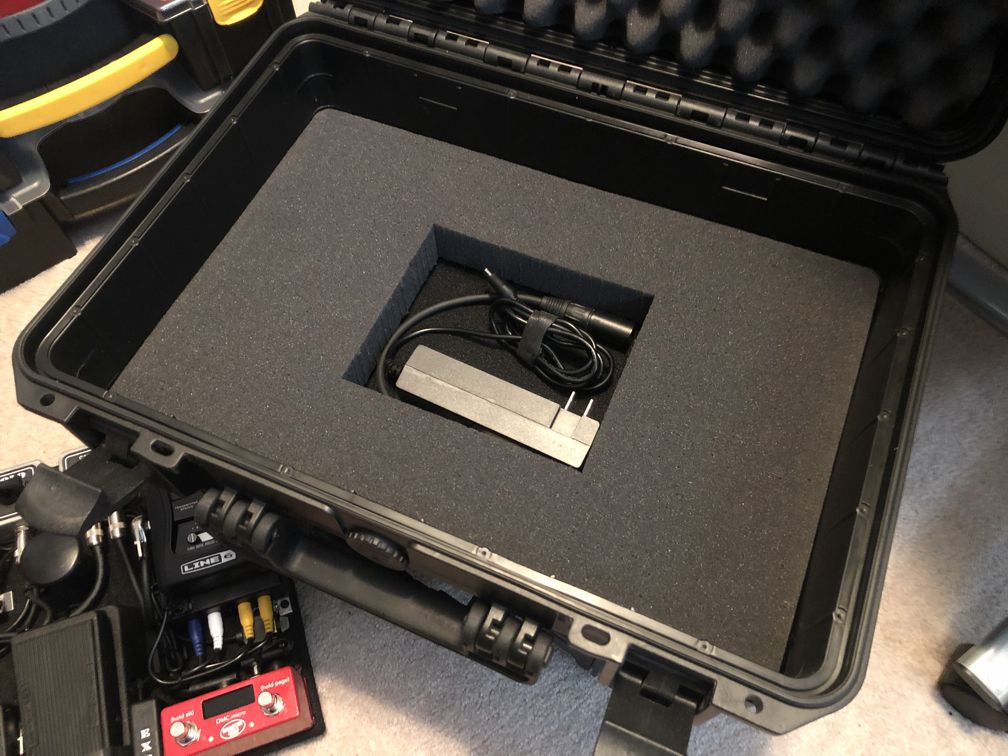

The Pedalboard, with space for cables and a spare HX power supply, travels in a plastic hard-case.



_________________________________________

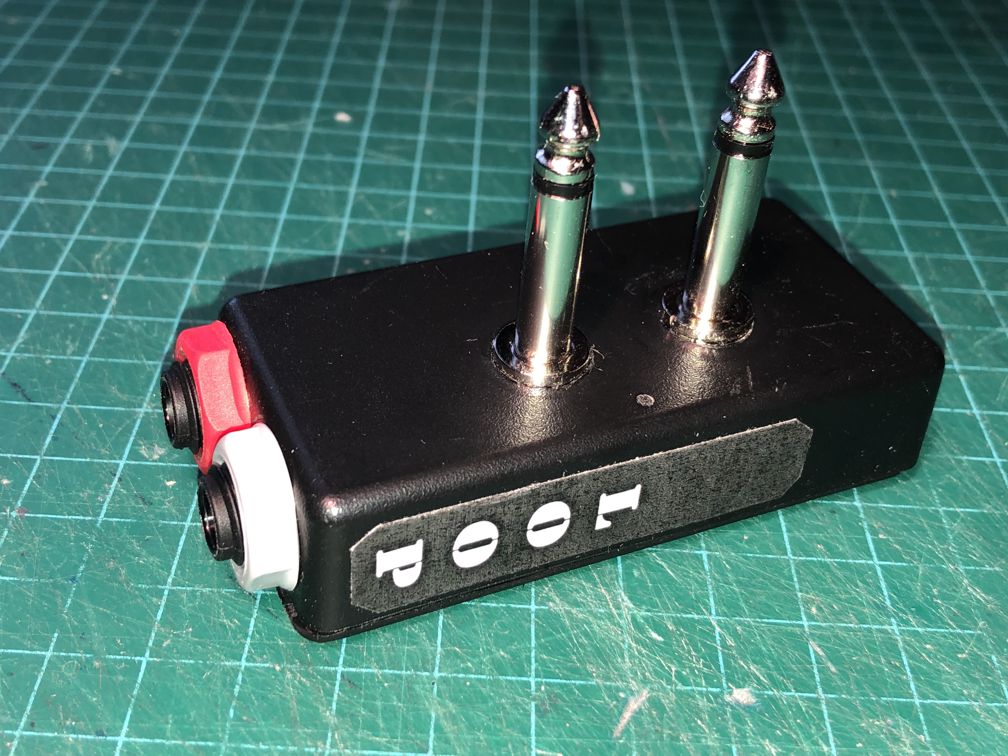

The HX STOMP has input and output connectors on 3 of 4 sides making it difficult to connect to all of the ports without taking up too much space... The FX LOOP Break-out-box allows easy access to the SEND/ RETURN Connectors while allowing other parts to be mounted close to the HX STOMP.



_________________________________________

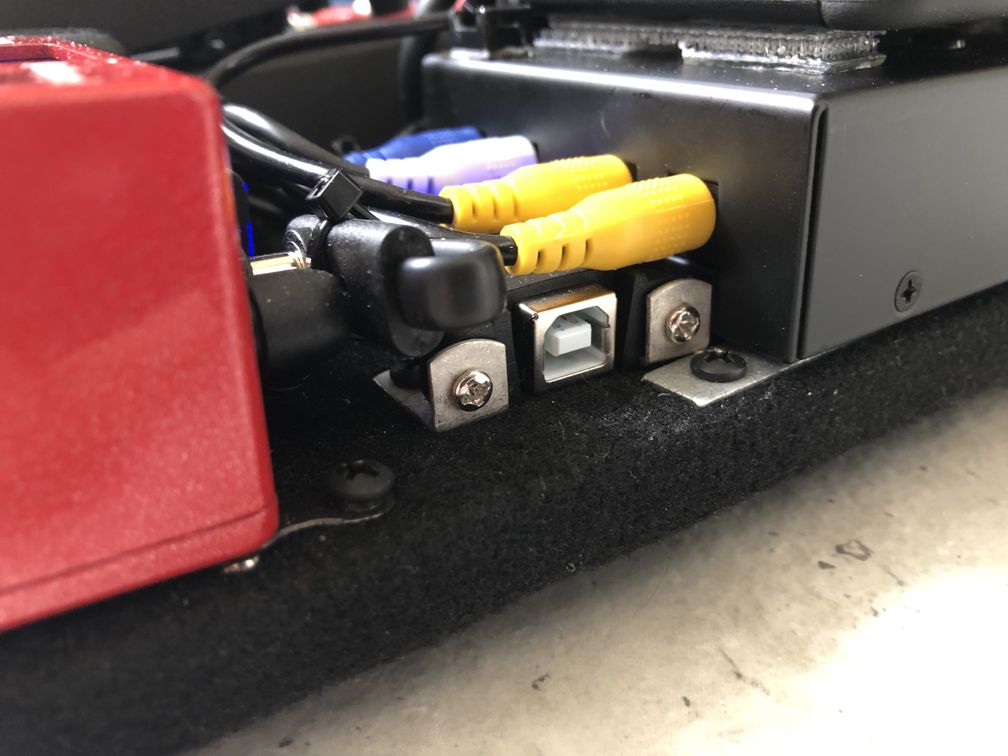

Easy access to the HX STOMP, for connection to your computer running HX EDIT, is made easier with this external USB jack on the right-side of the Pedalboard.



_________________________________________

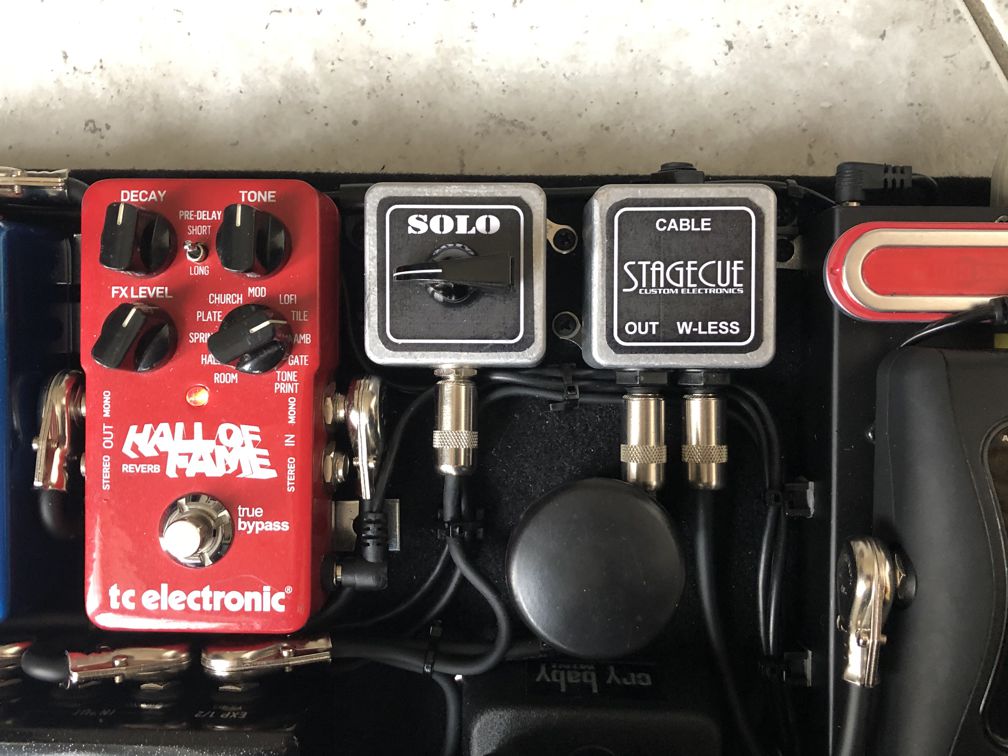

The SOLO level control box and Wireless/ Cable switch box are custom drilled and labelled aluminum die-cast boxes attached to the pedalboard with bike-chain links.



_________________________________________

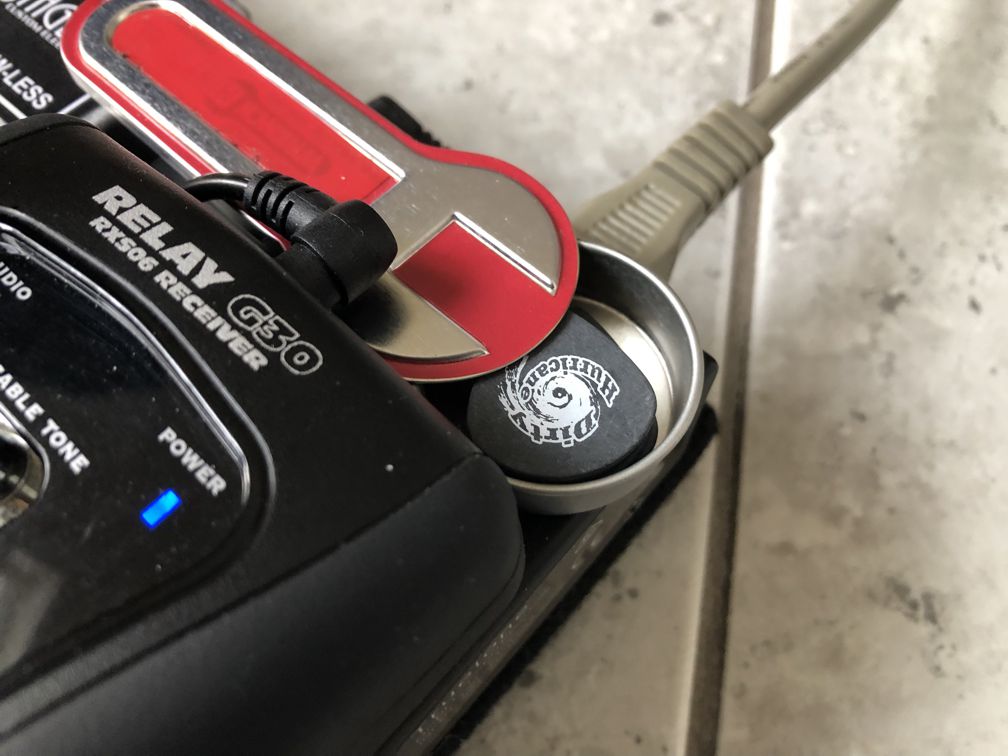

Mint-Tin Pick holder.
