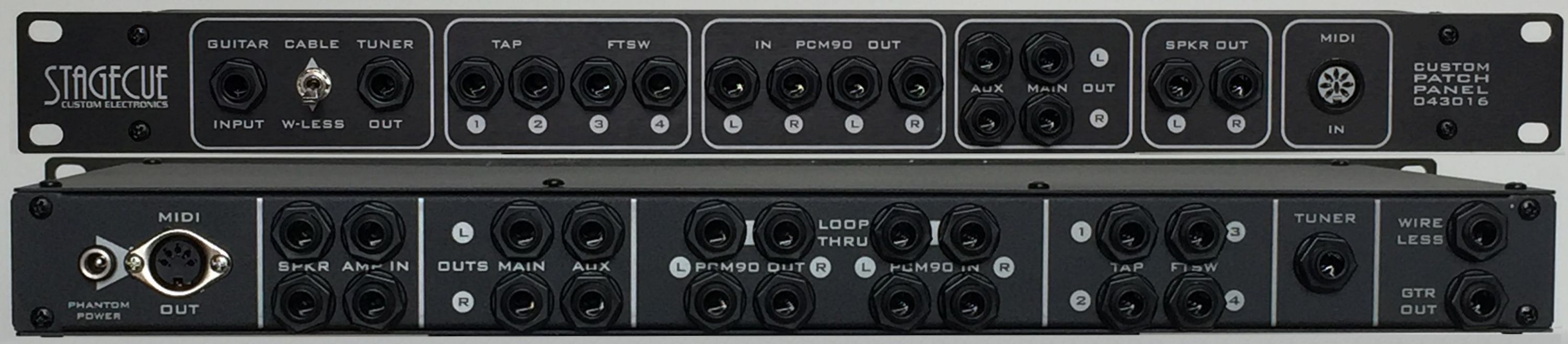

Here are some PIX of the Custom Patch Interface panel



The CUSTOM Patch Panel allows the following...

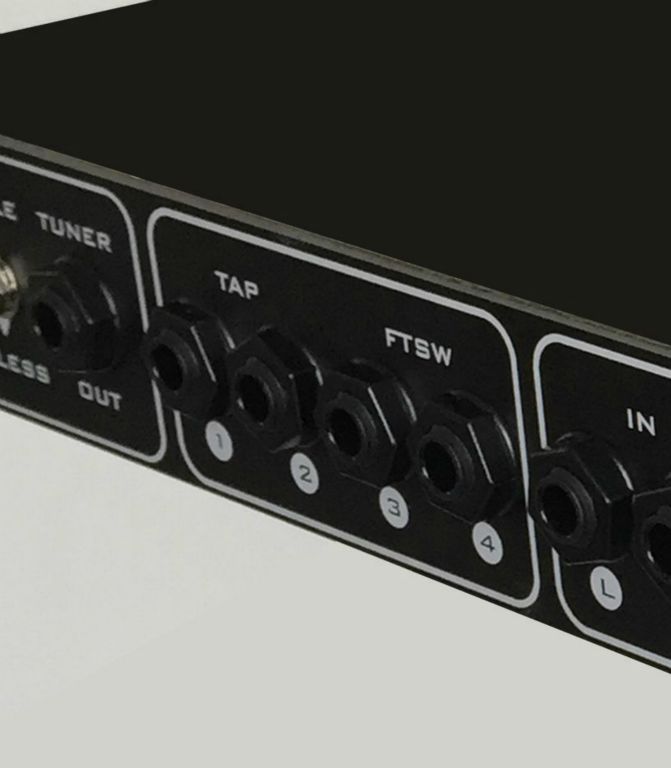

Guitar Input /Tuner Output and A/B Switch



Four Control Loopthroughs

FRONT





REAR

_______________________________________________________________

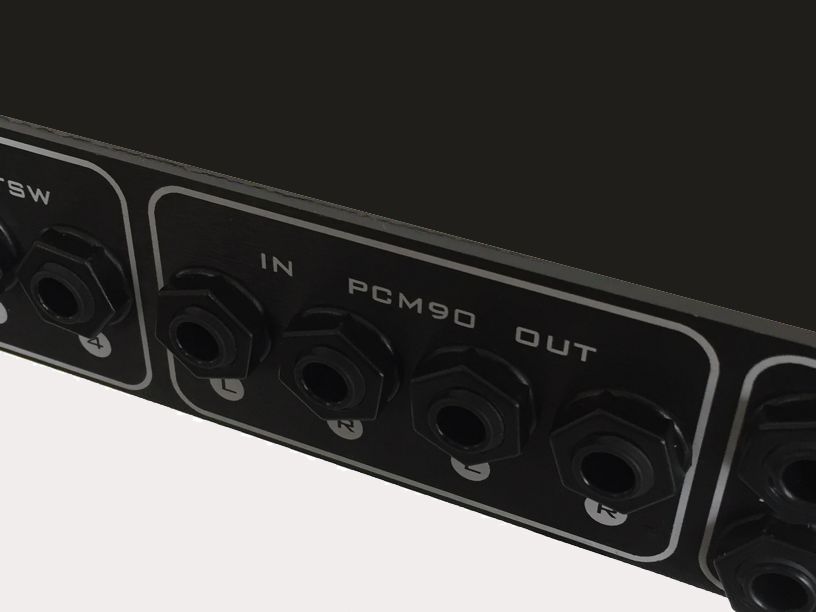

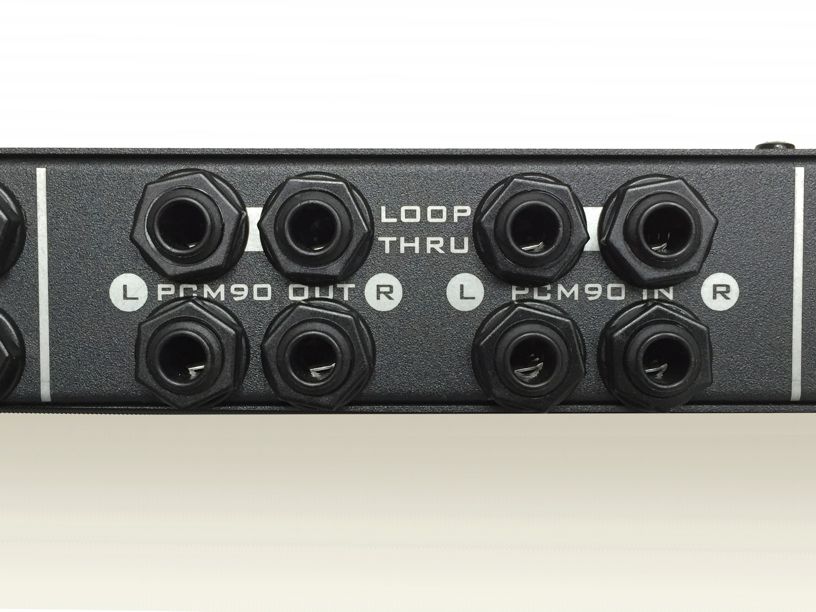

PCM-90 Patch

Allows patching external in's and out's to the PCM-90 in's and out's... useful if you want to process another instrument with the PCM-90 in the studio

FRONT



REAR



_______________________________________________________________

AUX Loopthroughs

FRONT



REAR



_______________________________________________________________

Speaker Outputs



_______________________________________________________________

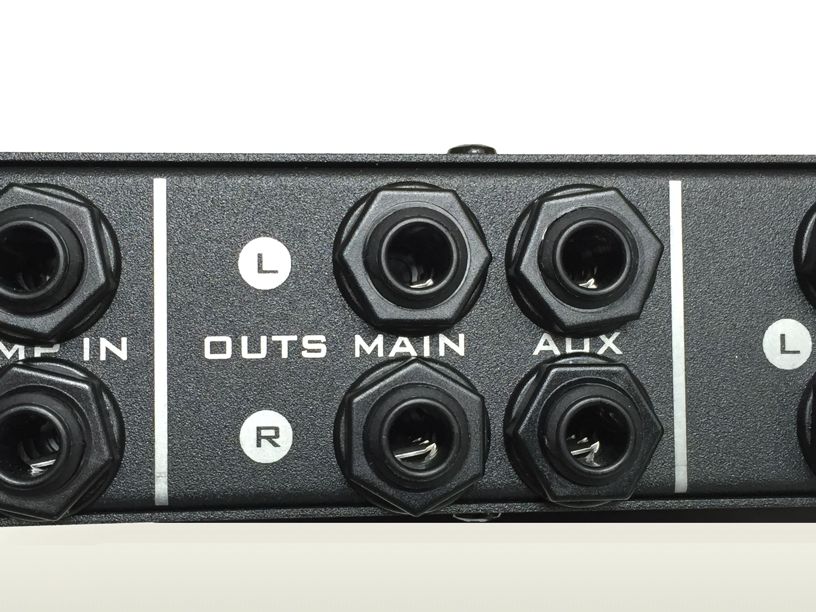

MAIN OUTPUT to AMP IN Normalized connection and Speaker Feedthrough &

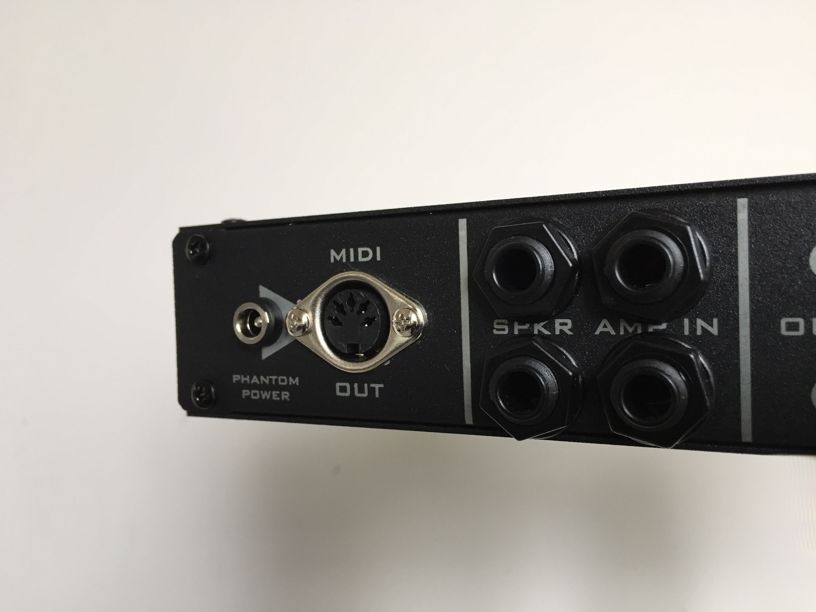

MIDI Feedthrough with Phantom Power connection to feed power to MIDI Controller

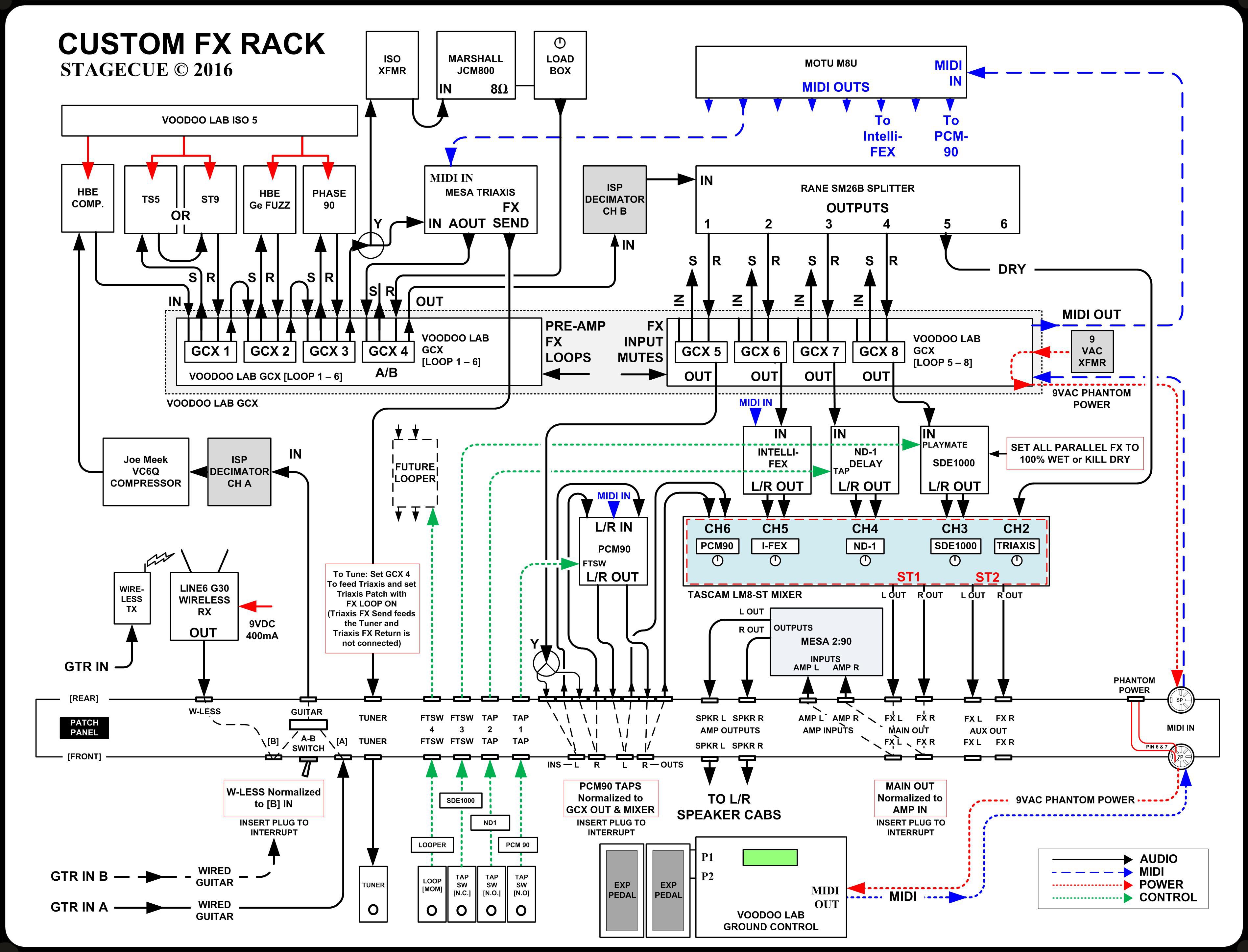

TYPICAL APPLICATION





RACK LAYOUT
