Patch Panel 1

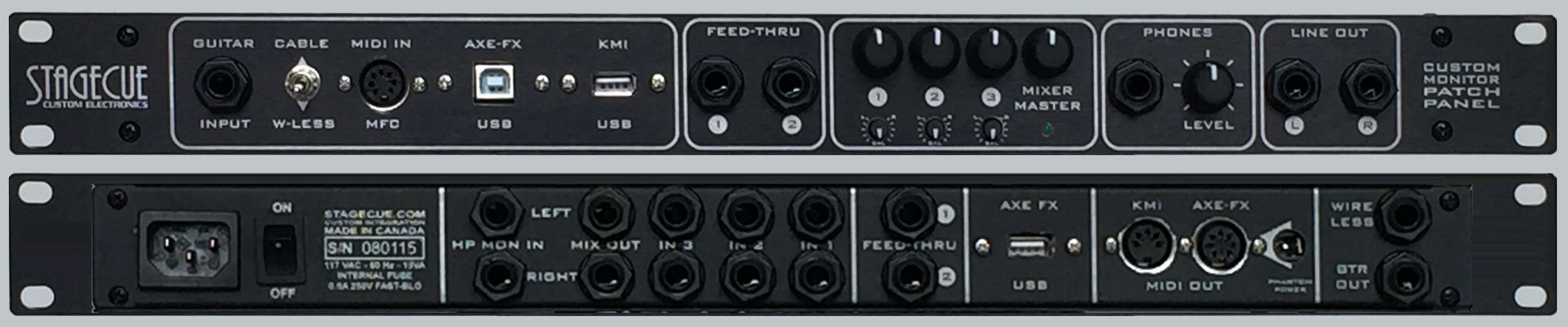

Here are some PIX of the Custom Patch Interface panel

fpanel

a typical application below

conn

The CUSTOM Patch Panel allows the following...

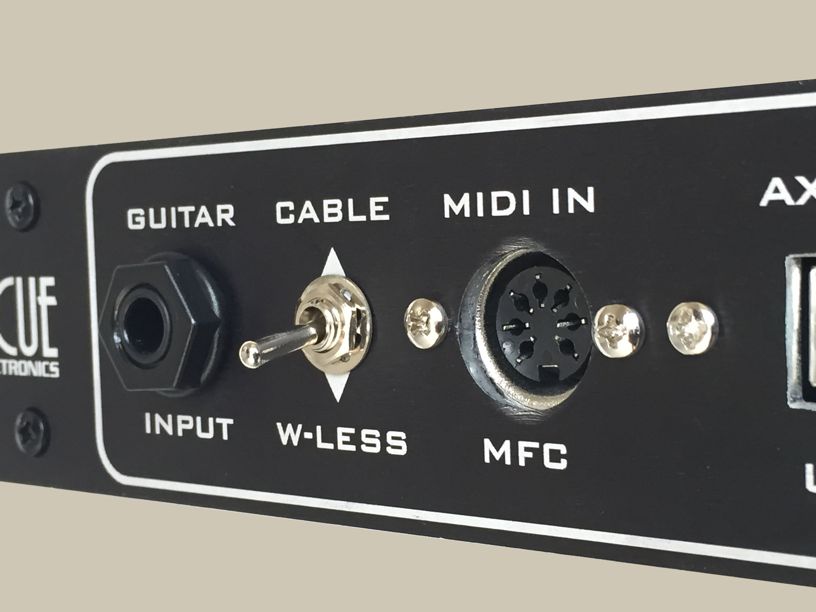

Guitar Input/ A/B Switch

Wireless IN/ Guitar Out

Fractal MFC MIDI IN

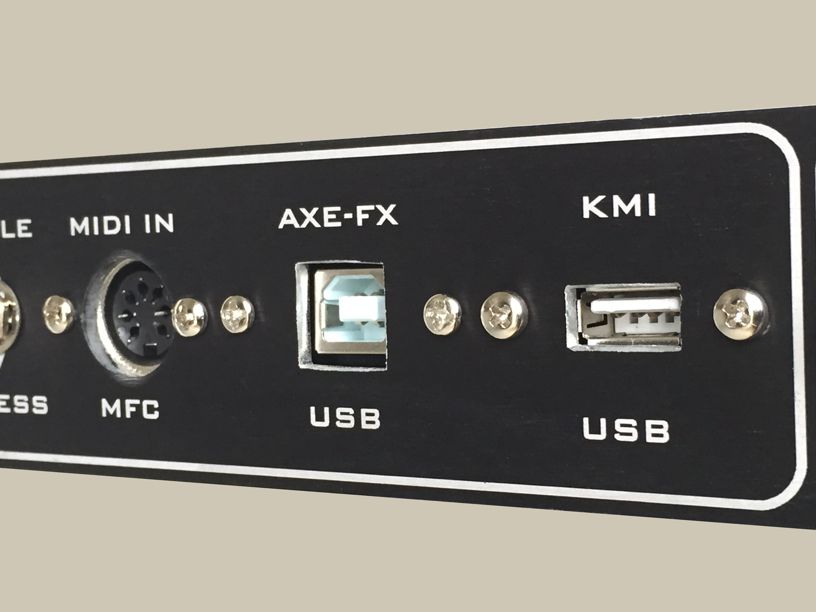

AXE FX to PC USB Connection & Keith McMillen 12-Step Expand-out

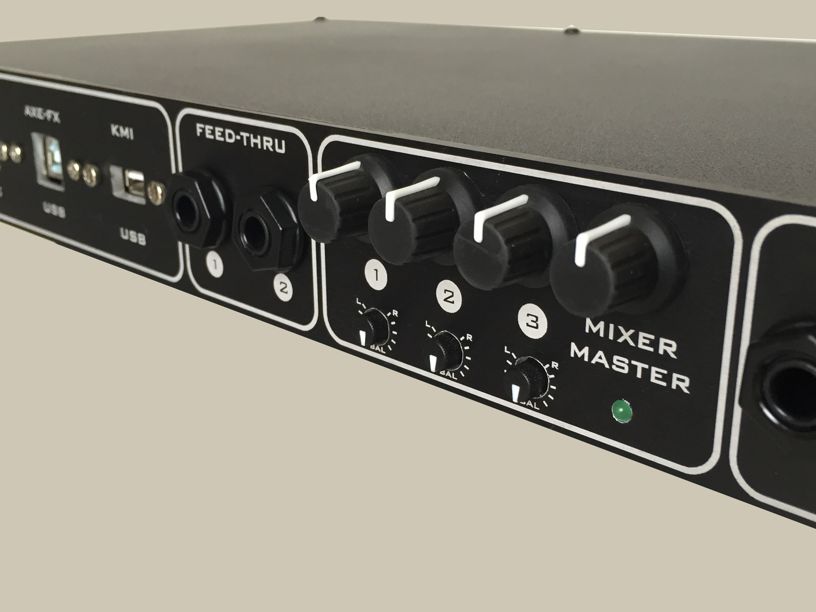

Feed Thru Connectors (TRS) & 3-Channel MIXER

Headphone and LINE OUT connectors

(Insertion of Headphones disconnects the LINE Outputs)

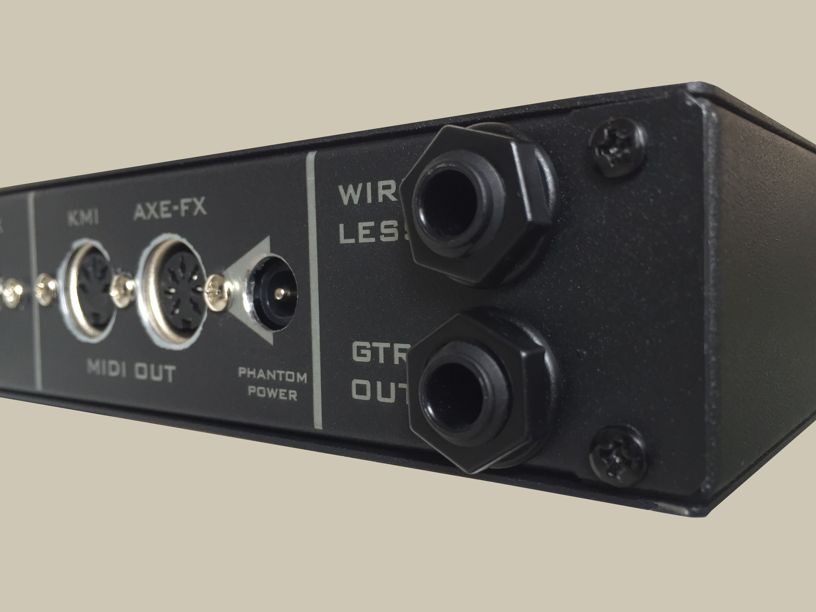

KMI 12-Step & AXE FX MFC MIDI OUT w/ Phantom Power IN

On the AXE FX MFC MIDI OUT connector:

you can use a 5-pin MIDI cable between the Patch Panel and the AXE-FX and use the Patch Panel Phantom Power Jack to send power to the MFC MIDI Foot-controller, or

you can use a 7-pin MIDI cable between the Patch Panel and the AXE-FX and use the AXE FX Phantom Power Jack to send power to the MFC MIDI Foot-controller.

This Patch Panel's Phantom Power IN Jack allows redundancy for powering the MFC in case the 7-pin MIDI cable between the Patch Panel and the AXE-FX is damaged... you can use a standard 5-pin MIDI cable in an emergency.

MIXER Inputs and Outputs and Headphone Monitor IN

(MIX OUT Normalized to Headphone Monitor IN)

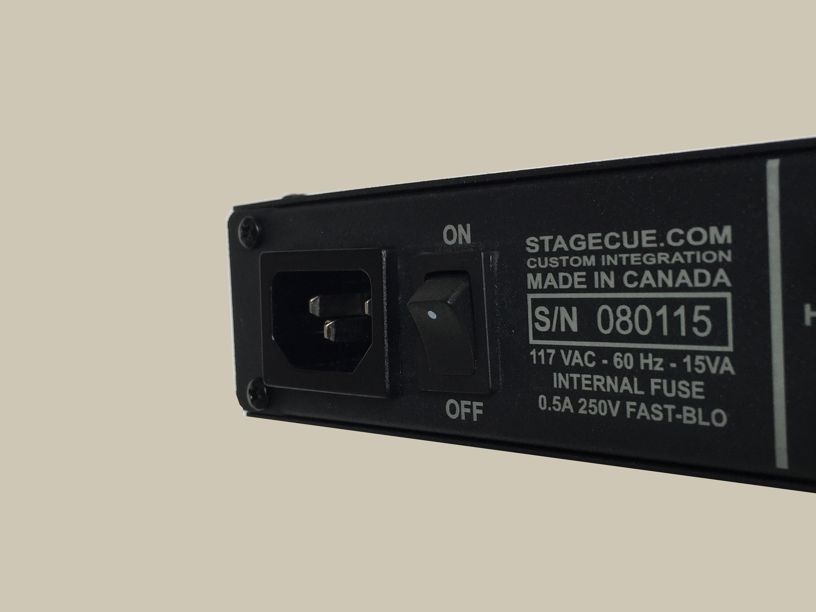

Power Inlet and Power Switch

(Internal 500mA Fast-Blo Fuse)

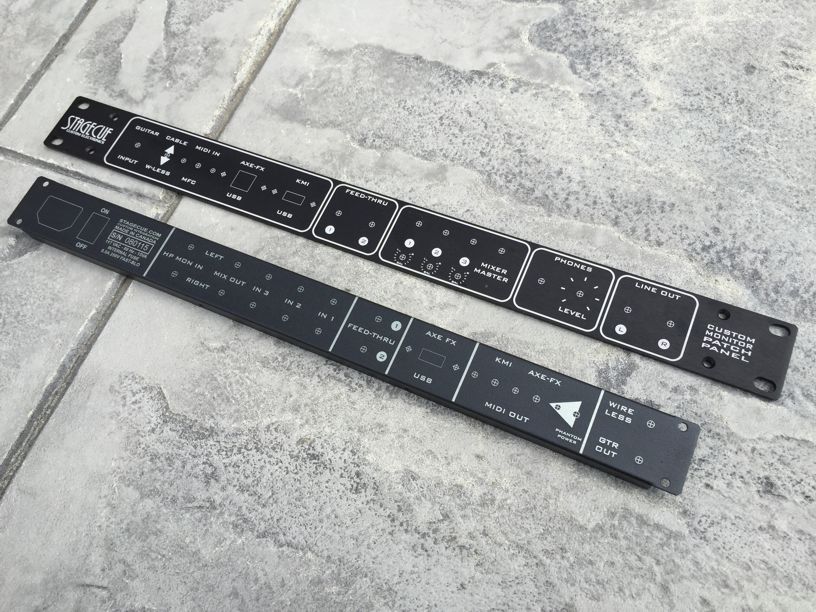

The front and rear panels were designed in CorelDraw^© and laser-engraved by AD Engraving in Toronto. The panels were drilled manually and stuffed with all of the 1/4" jacks MIDI jacks and control pots.
